Reedsensor M5 Tubular Threaded MMS-303

Quantity Item price
To 9
€4.49*
To 49
€4.09*
To 99
€3.99*
From 100
€4.49*

Available, delivery time 1-3 days

Product number: MMS-303-1-1-3
Product information "Reedsensor M5 Tubular Threaded MMS-303"

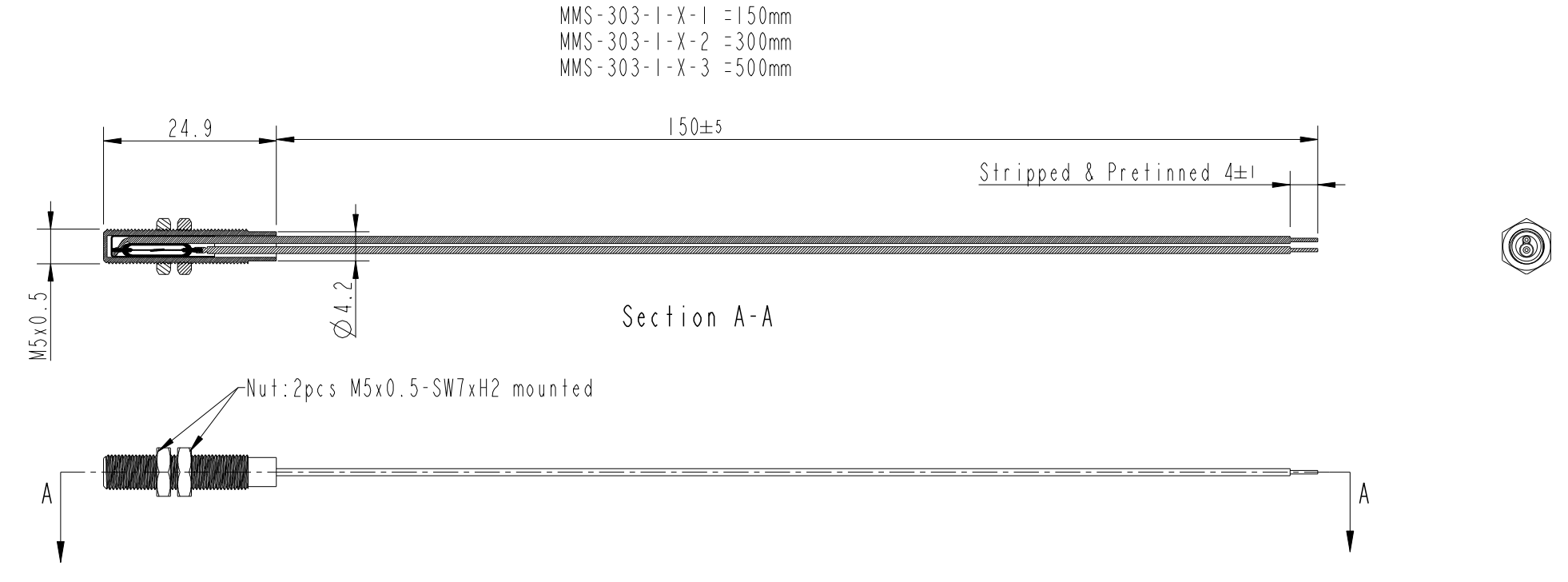

Threading: M5x0,5
Length: 24,9mm
Form-A

AT: 10..15
Breakdown voltage min. (VDC): 180
Cable length (mm): 500
Carry current max. (A): 0.5
Contact rating max. (W): 10
Form: A (Normally Open / SPST-NO)
Housing material: Ni-plated brass
Switching current max. (A): 0.5
Switching voltage max. (VDC): 100
Thread: M5x0.5
Working temperature: -20°C...+80°C

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Magnets from this series

Magnet M5 Tubular Threaded MMA-303
Thread: M5 x 0,5
Length: 24,9mm
Magnets: NdFeB / Ferrit

€5.29*

Magnet M6 Tubular Threaded MMA-304
Thread:  M6 x 1,0
Length:  38mm
Magnets: NdFeB / Ferrit

€8.29*

Magnet M8 Tubular Threaded MMA-305
Thread:  M8 x 1,25mm
Länge: 38mm
Magnets: NdFeB / Ferrite

€9.29*

Magnet M10 Tubular Threaded MMA-306
Thread: M10 x 1,0mm
Length: 38mm
Magnets : NdFeB / Ferrite

€10.29*

Magnet M12 Tubular Threaded MMA-307
Thread: M12 x 1,0mm
Length: 38mm
Magnets: NdFeb / Ferrite

€13.29*
